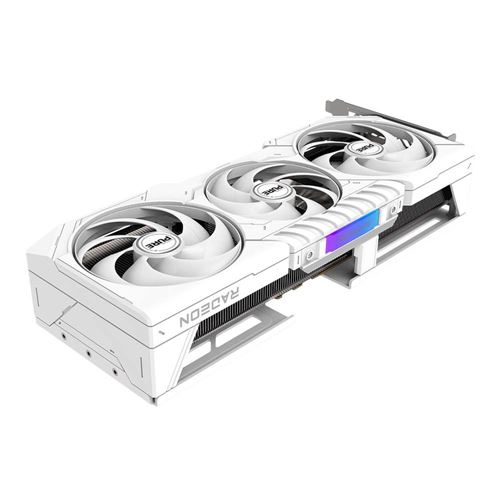

Sapphire Technology AMD Radeon RX 9070 PURE Overclocked Triple Fan 16GB GDDR6 PCIe 4.0 Graphics Card

Description

The Sapphire Technology AMD Radeon RX 9070 PURE Overclocked Triple Fan is a high-performance graphics card designed for gaming and content creation. Equipped with 16GB of GDDR6 memory and based on the RDNA 3 architecture, it delivers exceptional performance and stunning visuals. The overclocked design pushes the GPU to higher speeds, offering faster frame rates and smoother gameplay in demanding applications. The triple-fan cooling system ensures optimal heat dissipation, maintaining stable performance even during heavy workloads. With PCIe 4.0 support, it provides fast data transfer speeds, making it ideal for 4K gaming, VR, and professional creative tasks.

This card is designed for high-end gaming, content creation, and professional applications that require substantial graphical power. The combination of the RDNA 3 architecture, triple-fan cooling, and 16GB of GDDR6 memory makes it suitable for demanding tasks such as 4K gaming, ray tracing, and creative workloads.

General Specifications:

• GPU Architecture: AMD RDNA 3

• Model: Radeon RX 9070 PURE

• Interface: PCIe 4.0 x16

• Cooling Solution: Triple-fan (Custom cooling solution with three fans)

• Memory: 16GB GDDR6

• Memory Bus: 256-bit

• Maximum Memory Bandwidth: 512 GB/s

• Base Clock Speed: 2.5 GHz (Overclocked variant)

• Boost Clock Speed: 2.7 GHz (Overclocked variant)

• Stream Processors (CUDA-like equivalent): 5,120

• Ray Accelerators: 80 (for ray tracing)

• Compute Units: 80

• Memory Speed: 18 Gbps

• TDP (Thermal Design Power): 350W

• Power Connectors: 2 x 8-pin PCIe power connectors

• Recommended PSU: 750W or higher

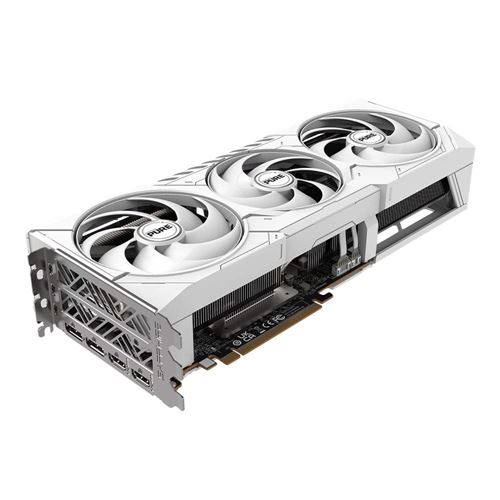

• Display Outputs:

  • 3 x DisplayPort 2.1

  • 1 x HDMI 2.1

• Maximum Resolution: 8K @ 60Hz, 4K @ 120Hz, or 1440p @ 240Hz

• Ray Tracing Support: Yes (via Ray Accelerators)

• AMD FidelityFX: Yes (for enhanced performance and image quality)

• AMD FreeSync: Yes (adaptive sync for smoother gaming experiences)

Performance Features:

• AMD RDNA 3 Architecture: Improved efficiency and performance per watt over previous generations.

• AMD Radeon Image Sharpening: Enhanced visuals with minimal performance hit.

• AMD FidelityFX Super Resolution (FSR): Upscaling technology for higher frame rates and image quality.

• Ray Tracing Support: Hardware-accelerated ray tracing with real-time performance.

• Variable Rate Shading (VRS): Dynamic shading for better performance in demanding scenes.

• AMD Radeon Boost: Automatically adjusts resolution during fast-motion to boost performance.

• AMD Anti-Lag: Reduces input lag for smoother gaming experiences.

• AMD Smart Access Memory (SAM): Utilizes both GPU and CPU capabilities for faster data transfer.

Design & Build:

• Cooling System: Triple-fan custom design for superior airflow and cooling efficiency, ensuring lower temperatures even under heavy loads.

• RGB Lighting: Customizable RGB lighting, controlled via Sapphire’s Tuning software.

• Form Factor: Dual-slot design with extended length due to the triple-fan system.

• Dimensions: Varies, but generally larger than standard 2-fan designs due to the triple-fan setup.

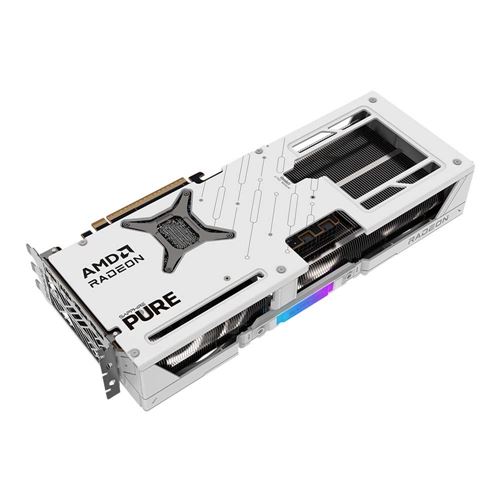

• Backplate: Reinforced metal backplate for additional support and aesthetics.

Software Support:

• AMD Radeon Software: Includes driver updates, game optimizations, and tuning features.

• Radeon Chill: Power-saving feature that automatically adjusts frame rate based on your gameplay.

• Radeon Anti-Lag: Helps to reduce latency, particularly useful in fast-paced games.

• Sapphire Tuning Software: For adjusting clock speeds, fan profiles, and monitoring temperatures.

Other Features:

• PCIe 4.0 Support: Full compatibility with PCIe 4.0-equipped motherboards for high-speed data transfer.

• Multi-monitor Support: Excellent for multi-display setups, with up to four monitors supported.

• 8K and High-Refresh Rate Gaming: Perfect for high-end 4K or 1440p gaming with high refresh rates (up to 240Hz), or immersive 8K gaming at 60Hz.
